Elite PowerPac

Whole House Water System
Models: 1620 & 5544 ScaleSolver

1620 Filter Specs

The Elite Water Filter is a whole house water filtration system that requires no maintenance. This system includes a fully automatic valve that runs a self-rinsing cycle.

• Inlet Connection: 1"
• Outlet Connection: 1"

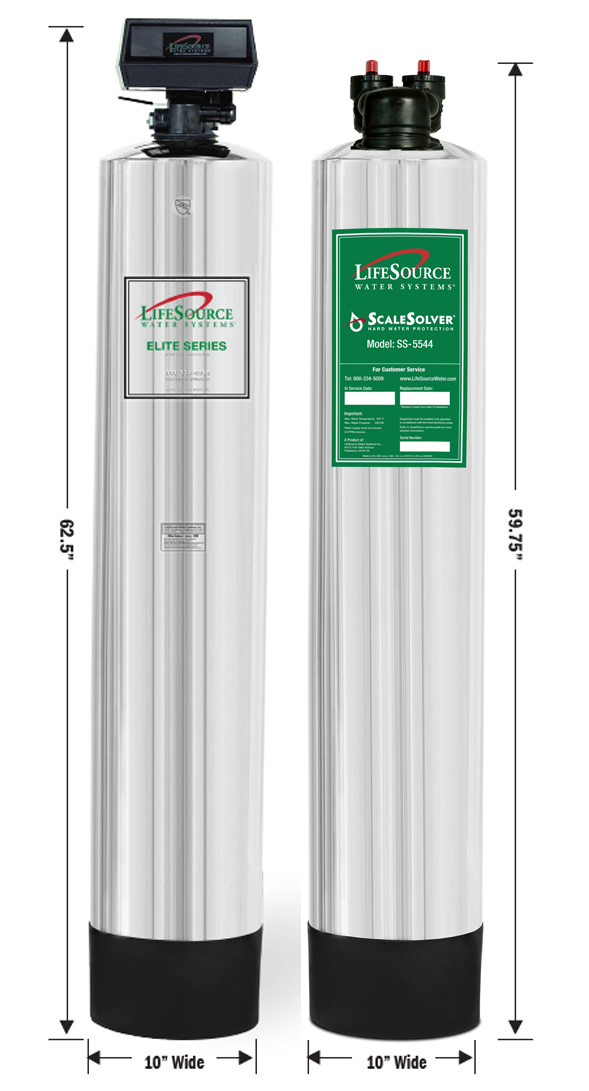

• Dimensions: 10"x 62.5"
• Flow Rate: Min. 10 - Max. 17 gpm
• Regulated Pressure: Min. 40 - Max. 100 psi

Power Requirement: 1 standard 110v electrical outlet within 5' of system or a wired 24v transformer for a more distant electrical outlet.

*In areas where outside temperatures are less than 32°F for an extended peiod of time, insulation is requried.

---

5544 ScaleSolver Specs

The 5544 ScaleSolver is self-contained and ready to use. A simple inlet and outlet connection is all that is required for installation. No backwash is necessary.

• Inlet Connection: 1" PVC Union with Socket
• Outlet Connection: 1" PVC Socket
• Dimensions: 10"x 59.75"
• Max. Rate: 20 gpm
• Max. Pressure: 100 psi

*Chlorine must not be above 3.0 PPM

*In areas where outside temperatures are less than 32°F for an extended peiod of time, insulation is requried.
